SchemaSync 使用方式如下:

schemas

# source/target format: mysql://user:pass@host:port/database
# output format: [_].YYYYMMDD.(patch|revert)[_].sql
-h, --help            show this help message and exit
-V, --version         show version and exit.
-r, --revision        increment the migration script version number
                      if a file with the same name already exists.
-a, --sync-auto-inc   sync the AUTO_INCREMENT value for each table.
-c, --sync-comments   sync the COMMENT field for all tables AND columns
--tag=TAG             tag the migration scripts as _.
                      Valid characters include [A-Za-z0-9-_]
--output-directory=OUTPUT_DIRECTORY
                      directory to write the migration scrips.
                      The default is current working directory.
                      Must use absolute path if provided.
--log-directory=LOG_DIRECTORY
                      set the directory to write the log to.
                      Must use absolute path if provided.
                      Default is output directory.
                      Log filename is schemasync.log

簡單的說就是帶入來源資料庫位置與目的資料庫位置,SchemaSync 即會連入來源與目的資料庫進行比對,產生對應的腳本檔案。

其它像是帶入 -r 參數增加腳本檔案的版本號、帶入 -c 參數指定連帶 Comment 一起產進腳本、帶入 –tag 參數指定腳本檔案的 Tag 部份。

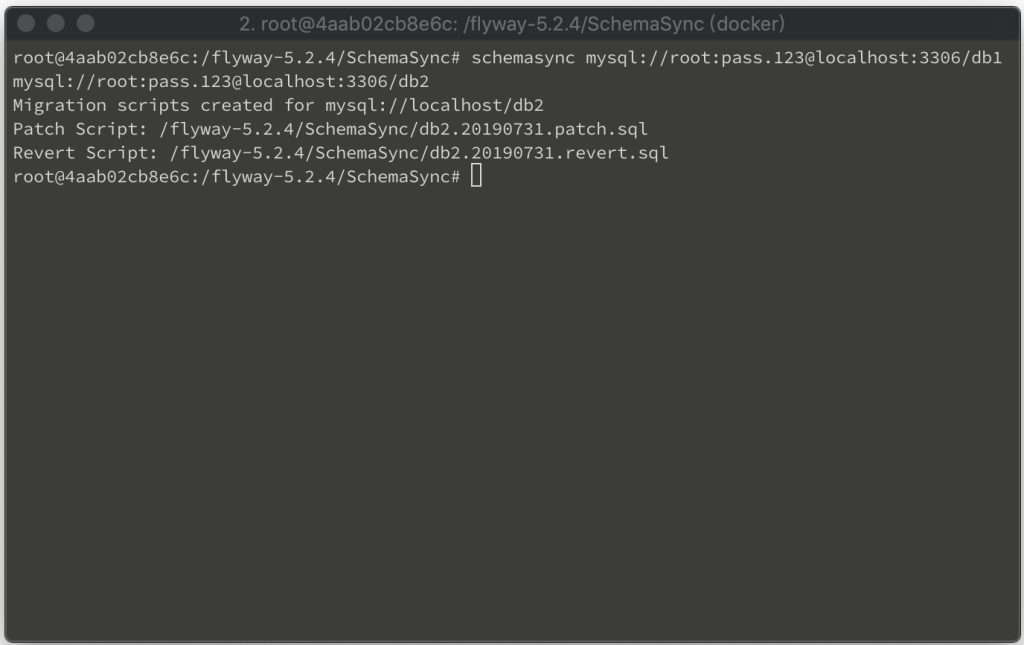

這邊實際運行看看,可看到跑完後會產生了一個 patch 用的腳本,一個是 revert 用的腳本。

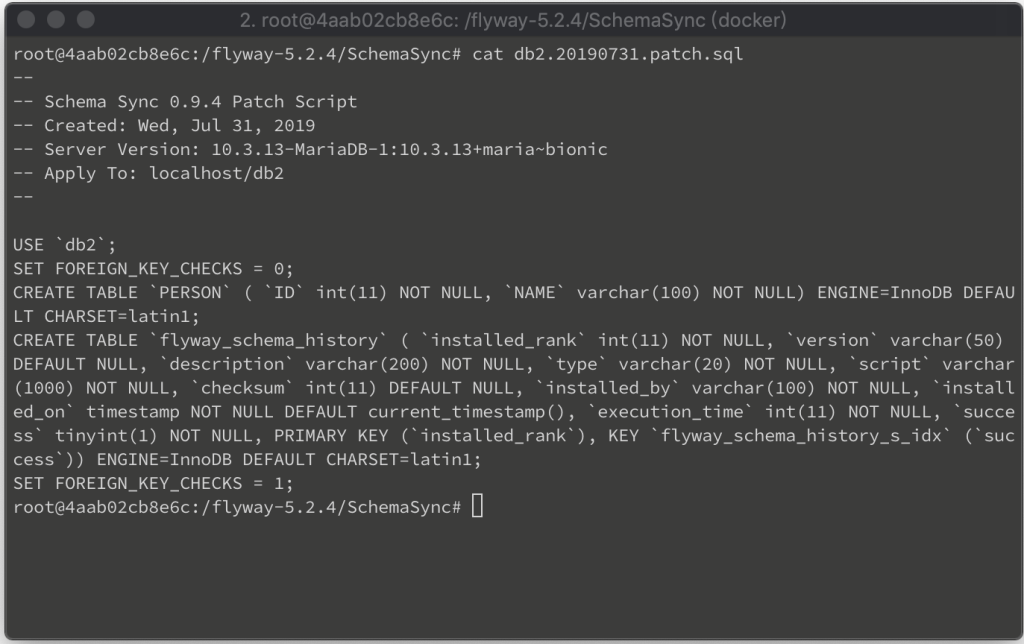

如果 patch 的腳本是新增資料表。

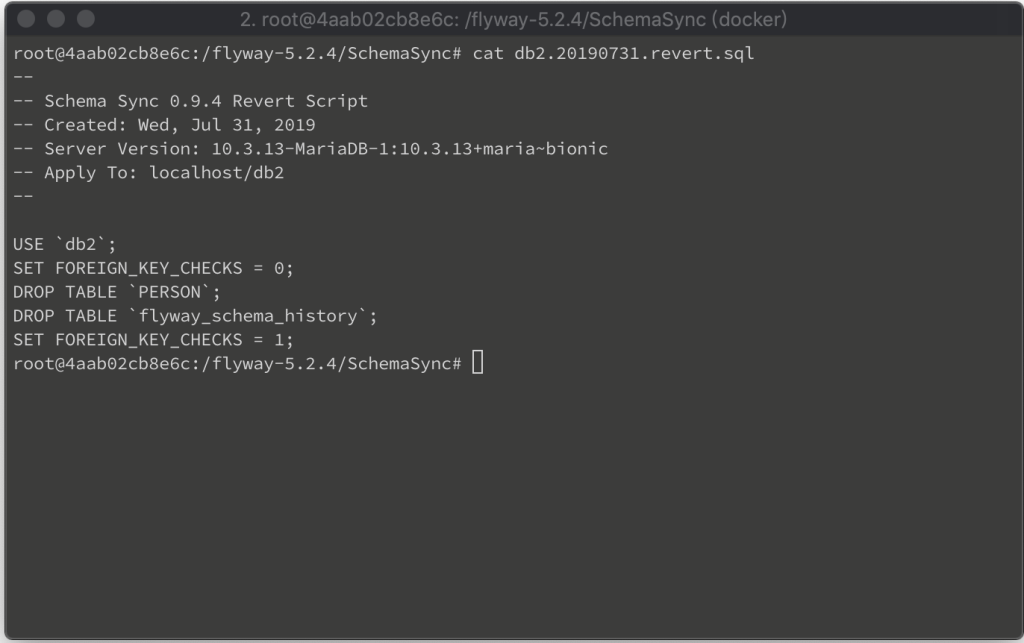

那 revert 的腳本就會是刪除資料表。

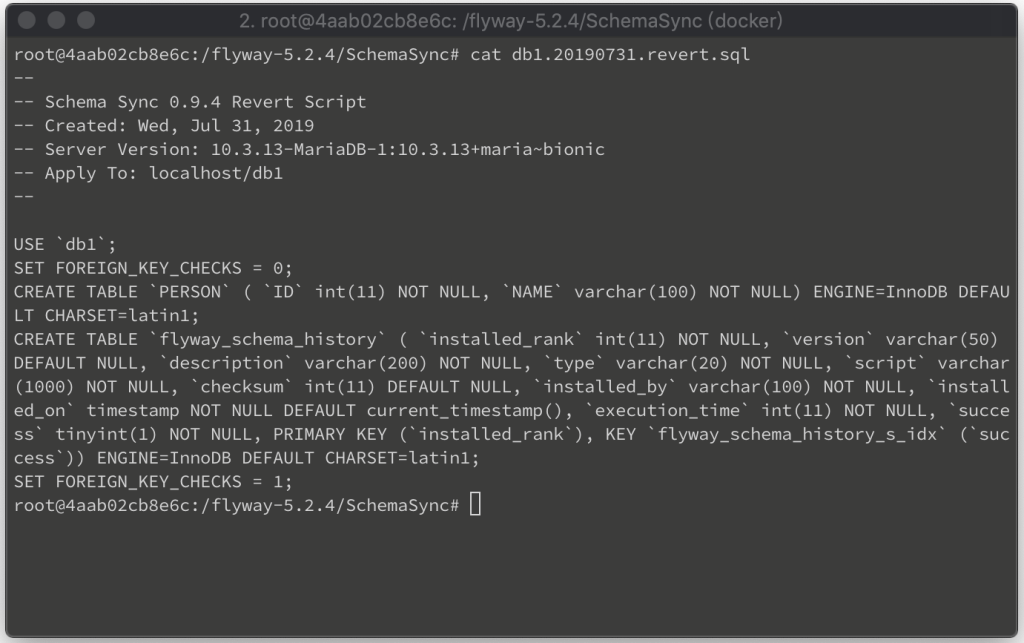

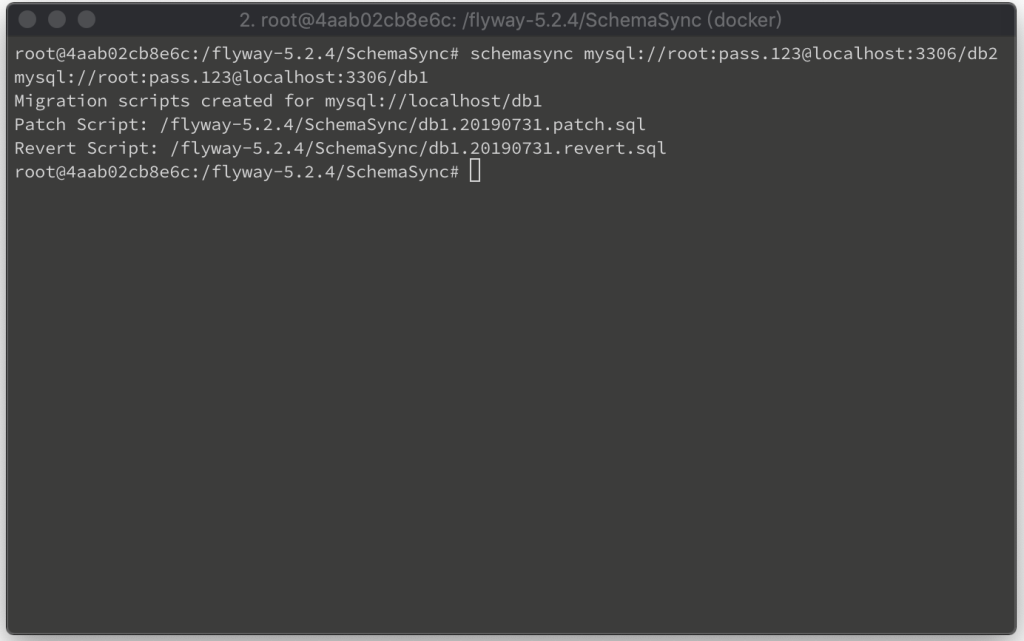

如果 source 與 target 資料庫位置互換,那產出來的腳本也會跟著互換。
