Flutter 的 Column widget 可用來將子元件垂直放置。
其建構子如下：
Column({Key key, MainAxisAlignment mainAxisAlignment: MainAxisAlignment.start, MainAxisSize mainAxisSize: MainAxisSize.max, CrossAxisAlignment crossAxisAlignment: CrossAxisAlignment.center, TextDirection textDirection, VerticalDirection verticalDirection: VerticalDirection.down, TextBaseline textBaseline, List children: const [] })
屬性如下：
| Name | Type | Description |
|---|---|---|
| children | List | The widgets below this widget in the tree. |
| crossAxisAlignment | CrossAxisAlignment | How the children should be placed along the cross axis. |
| direction | Axis | The direction to use as the main axis. |
| hashCode | int | The hash code for this object. |
| key | Key | Controls how one widget replaces another widget in the tree. |
| mainAxisAlignment | MainAxisAlignment | How the children should be placed along the main axis. |
| mainAxisSize | MainAxisSize | How much space should be occupied in the main axis. |
| runtimeType | Type | A representation of the runtime type of the object. |
| textBaseline | TextBaseline | If aligning items according to their baseline, which baseline to use. |
| textDirection | TextDirection | Determines the order to lay children out horizontally and how to interpret start and end in the horizontal direction. |
| verticalDirection | VerticalDirection | Determines the order to lay children out vertically and how to interpret start and end in the vertical direction. |
方法如下：
| Name | Return Type | Description |
|---|---|---|
| createElement() | MultiChildRenderObjectElement | RenderObjectWidgets always inflate to a RenderObjectElement subclass. |
| createRenderObject(BuildContext context) | RenderFlex | Creates an instance of the RenderObject class that this RenderObjectWidget represents, using the configuration described by this RenderObjectWidget. |
| debugDescribeChildren() | List | Returns a list of DiagnosticsNode objects describing this node’s children. |
| debugFillProperties(DiagnosticPropertiesBuilder description) | void | |
| didUnmountRenderObject(RenderObject renderObject) | void | A render object previously associated with this widget has been removed from the tree. The given RenderObject will be of the same type as returned by this object’s createRenderObject. |
| getEffectiveTextDirection(BuildContext context) | TextDirection | The value to pass to RenderFlex.textDirection. |
| noSuchMethod(Invocation invocation) | dynamic | Invoked when a non-existent method or property is accessed. |
| toDiagnosticsNode({String name, DiagnosticsTreeStyle style }) | DiagnosticsNode | Returns a debug representation of the object that is used by debugging tools and by toStringDeep. |
| toString({DiagnosticLevel minLevel: DiagnosticLevel.debug }) | String | Returns a string representation of this object. |
| toStringDeep({String prefixLineOne: ‘’, String prefixOtherLines, DiagnosticLevel minLevel: DiagnosticLevel.debug }) | String | Returns a string representation of this node and its descendants. |
| toStringShallow({String joiner: ‘, ‘, DiagnosticLevel minLevel: DiagnosticLevel.debug }) | String | Returns a one-line detailed description of the object. |
| toStringShort() | String | A short, textual description of this widget. |
| updateRenderObject(BuildContext context, RenderFlex renderObject) | void | Copies the configuration described by this RenderObjectWidget to the given RenderObject, which will be of the same type as returned by this object’s createRenderObject. |

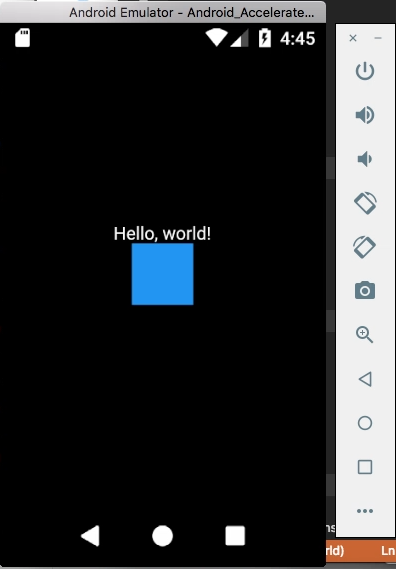

使用上只要將要垂直放置的元件用陣列的方式設置到 children 屬性即可。

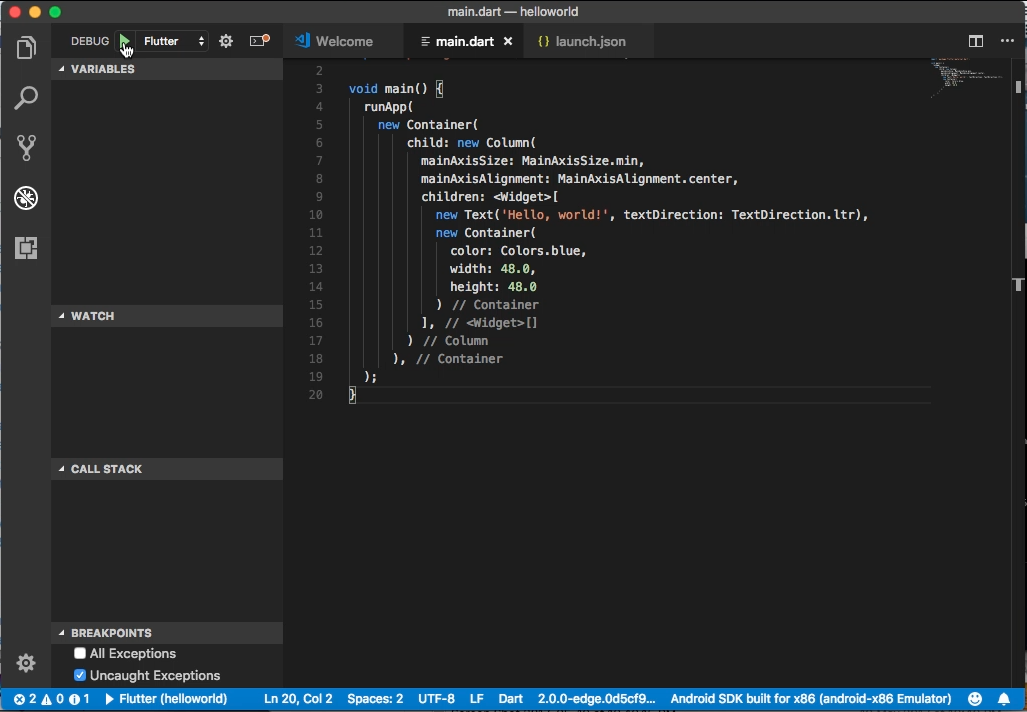

import 'package:flutter/material.dart';
void main() {
runApp(
new Container(
child: new Column(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
new Text('Hello, world!', textDirection: TextDirection.ltr),
new Container(
color: Colors.blue,
width: 48.0,
height: 48.0
)
],
)
),
);
}
