筆者很久以前寫過一篇.NET 4.0 New Feature - System.Runtime.Caching,稍稍的簡單介紹了一下.NET 4.0新加入的快取框架。基本上的操作只要參閱那篇應該都不成問題,但是該快取框架內建只提供HostFileChangeMonitor與SqlChangeMonitor兩個ChangeMonitor的實作,我們要快取的資料不可能永遠在磁碟與SQL DB這兩個快取介質內,有時候我們可能會要自己串些Restful API抓取資料並做快取,或是是要套些比較複雜的檢查規則,這時我們就必須善用該快取框架易於擴充的特點,客制自己的ChangeMonitor。

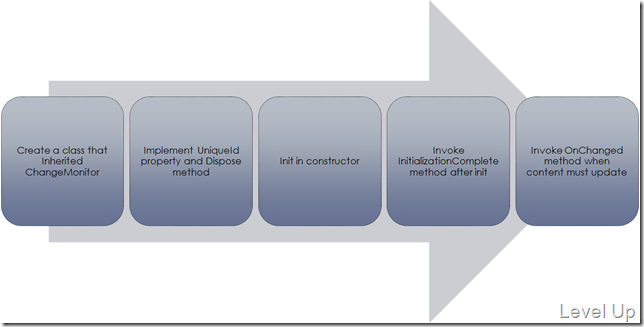

要客制自己的ChangeMonitor不難,大概只有五個流程步驟:

依序是:

	Create a class that Inherited ChangeMonitor

	Implement UniqueId property and Dispose method

	Init in constructor

	Invoke InitializationComplete method after init

	Invoke OnChanged method when content must update

簡單的說就是要建立一個類別繼承至ChangeMonitor,並覆寫它的Uniqueid屬性與Dispose方法,接著在建構子這邊做些初始的動作,初始完呼叫InitializationComplete方法告知初始動作完成,最後在偵測到資料變動時呼叫OnChanged方法就可以了。

這邊可參閱MSDN ChangeMonitor Class 這篇的Notes to Inheritors這段,裡面有提到很多實作的眉眉角角需要注意。

實際的來看個例子加深印象,筆者在這邊簡單的實做了一個ClipboardChangeMonitor,期望Cache的內容能在剪貼簿資料發生變動時失效。

using System; using System.Collections.Generic; using System.Linq; using System.Runtime.Caching; using System.Text; using System.Threading.Tasks; using System.Windows.Forms;

namespace CustomChangeMonitorDemo { public class ClipboardChangeMonitor : ChangeMonitor { #region Var private string _clipboardText; private Timer _timer; private string _uniqueID; #endregion

	#region Private Property
	private string m_ClipboardText
	{
		get { return _clipboardText ?? string.Empty; }
		set
		{
			if (_clipboardText == value)
				return;

			_clipboardText = value;
			OnChanged(value);
		}
	}

	private System.Windows.Forms.Timer m_Timer
	{
		get
		{
			return _timer ?? (_timer = new System.Windows.Forms.Timer());
		}
	}
	#endregion

	#region Public Property
	public override string UniqueId
	{
        get { return _uniqueID ?? (_uniqueID = Guid.NewGuid().ToString()); }
	}
	#endregion

	#region Constructor
	public ClipboardChangeMonitor()
	{
		m_Timer.Interval = 1000;
		m_Timer.Tick += m_Timer_Tick;
		m_Timer.Start();

		_clipboardText = Clipboard.GetText();

		InitializationComplete();
	}
	#endregion

	#region Protected Method
	protected override void Dispose(bool disposing)
	{
	}
	#endregion

	#region Event Process
	void m_Timer_Tick(object sender, EventArgs e)
	{
		m_ClipboardText = Clipboard.GetText();
	}
	#endregion
}

}

整個實作非常的簡單,只是在建構子這邊擷取剪貼簿的內容與設定Timer,然後叫用InitializationComplete,後面就只是定時的去看剪貼簿是否有所更動。Uniqueid屬性這邊筆者也只是簡單的傳回一個識別用的GUID,而Dispose方法因為該類別沒什麼非託管的資源,這邊就姑且讓它是空的。

這邊寫個簡單的Console程式測試一下:

using System; using System.Collections.Generic; using System.Diagnostics; using System.Linq; using System.Runtime.Caching; using System.Text; using System.Threading; using System.Threading.Tasks; using System.Windows.Forms;

namespace CustomChangeMonitorDemo { class Program { [STAThread] static void Main(string[] args) { FileContentProvider textFile = new FileContentProvider(); Stopwatch sw = new Stopwatch(); while (true) { sw.Reset(); sw.Start(); Console.WriteLine(textFile.Content); sw.Stop(); Console.WriteLine(“Elapsed Time: {0} ms”, sw.ElapsedMilliseconds); Console.WriteLine(new string(’=’, 50)); Console.ReadLine(); Application.DoEvents(); } } }

public class FileContentProvider
{
	public String Content
	{
		get
		{
			const string CACHE_KEY = "Content";
			string content = m_Cache[CACHE_KEY] as string;
			if (content == null)
			{
				CacheItemPolicy policy = new CacheItemPolicy();
				//policy.SlidingExpiration = TimeSpan.FromMilliseconds(1500);

				var changeMonitor = new ClipboardChangeMonitor();

				policy.ChangeMonitors.Add(changeMonitor);

				content = Guid.NewGuid().ToString();
				Thread.Sleep(1000);
				m_Cache.Set(CACHE_KEY, content, policy);
			}
			return content;
		}
	}

	private ObjectCache _cache;
	private ObjectCache m_Cache
	{
		get
		{
			if (_cache == null)
				_cache = MemoryCache.Default;
			return _cache;
		}
	}
}

}

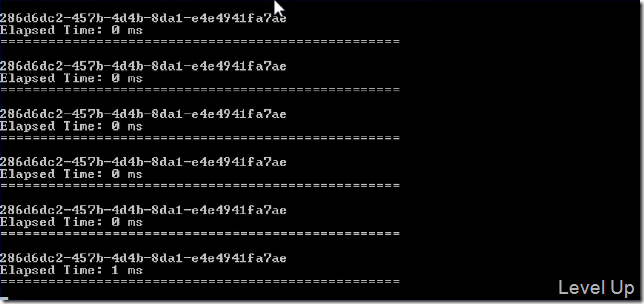

運行起來會像下面這樣,不論怎麼按Enter更新,Cache的GUID都是一樣的。

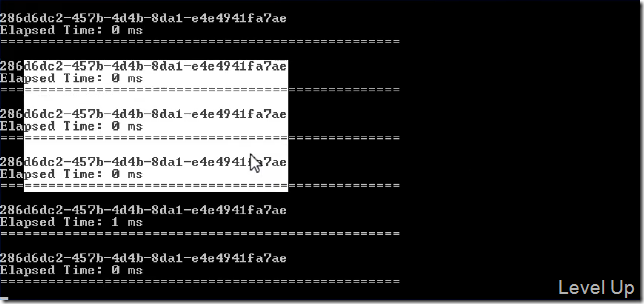

但是一經選取複製。

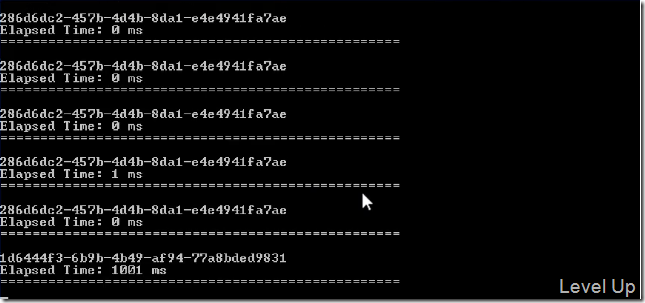

ClipboardChangeMonitor就會偵測到剪貼簿有變動,Cache的資料就會過期進而更新,因此複製完後按下Enter更新,這邊會重新抓取新的Guid。

若有需要可至CustomChangeMonitorDemo下載完整的程式範例。

Link

	CustomChangeMonitorDemo
