Introduction

這篇簡單記錄一下，如何透過SystemInformation類別的PowerStatus屬性，來查看目前電源的使用狀態。

Namespace

System.Windows.Forms

Assembly

System.Windows.Forms (in System.Windows.Forms.dll)

Properties

以下為PowerStatus類別所擁有的屬性(摘自MSDN Library)

BatteryChargeStatusGets the current battery charge status.
BatteryFullLifetimeGets the reported full charge lifetime of the primary battery power source in seconds.
BatteryLifePercentGets the approximate percentage of full battery time remaining.
BatteryLifeRemainingGets the approximate number of seconds of battery time remaining.
PowerLineStatusGets the current system power status.

MSDN上已經說明的很清楚了，這邊就只簡單的說明一下：

BatteryChargeStatus表示目前充電狀態。
回傳值為BatteryChargeStatus型態的列舉值，其值可為High(高電量)、Low(低電量)、Critical(極低電量)、Charging(充電中)、NoSystemBattery(沒電池)、與Unknown(狀態不詳)。
BatteryFullLifetime表示充滿電力可使用多久時間(-1為不詳)。
BatteryLifePercent表示電力剩餘多少百分比(255為不詳)。
BatteryLifeRemaining表示剩餘電力可使用多久時間(-1為不詳)。
PowerLineStatus表示電源狀態。
回傳值為PowerLineStatus型態的列舉值，其值可為Online(充電狀態)、Offline(電池模式)、與Unknow(狀態不詳)。

Example

C#

namespace BatteryInfo
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private void UpdateInfo()
        {
            PowerStatus ps = SystemInformation.PowerStatus;
            this.tbxPowerStatus.Text = ps.PowerLineStatus.ToString();
            this.tbxBatteryChargeStatus.Text = ps.BatteryChargeStatus.ToString();
            this.tbxBatteryFullLifetime.Text = ps.BatteryFullLifetime.ToString();
            this.tbxBatteryLifePercent.Text = ps.BatteryLifePercent.ToString();
            this.tbxBatteryLifeRemaining.Text = ps.BatteryLifeRemaining.ToString();
        }
        private void timer1_Tick(object sender, EventArgs e)
        {
            UpdateInfo();
        }
        private void Form1_Load(object sender, EventArgs e)
        {
            UpdateInfo();
        }
    }
}

VB.NET

Public Class Form1
    Private Sub UpdateInfo()
        Dim ps As PowerStatus = SystemInformation.PowerStatus
        With Me
            .tbxPowerStatus.Text = ps.PowerLineStatus.ToString
            .tbxBatteryChargeStatus.Text = ps.BatteryChargeStatus.ToString
            .tbxBatteryFullLifetime.Text = ps.BatteryFullLifetime
            .tbxBatteryLifePercent.Text = ps.BatteryLifePercent
            .tbxBatteryLifeRemaining.Text = ps.BatteryLifeRemaining
        End With
    End Sub
    Private Sub timer1_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles timer1.Tick
        UpdateInfo()
    End Sub
    Private Sub Form1_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
        UpdateInfo()
    End Sub
End Class

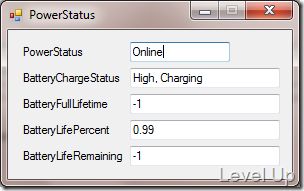

執行畫面

[C#][VB.NET]Check Current Power Status with SystemInformation.PowerStatus

  • PowerStatus 類別
  • PowerLineStatus 列舉型別
  • BatteryChargeStatus 列舉型別
